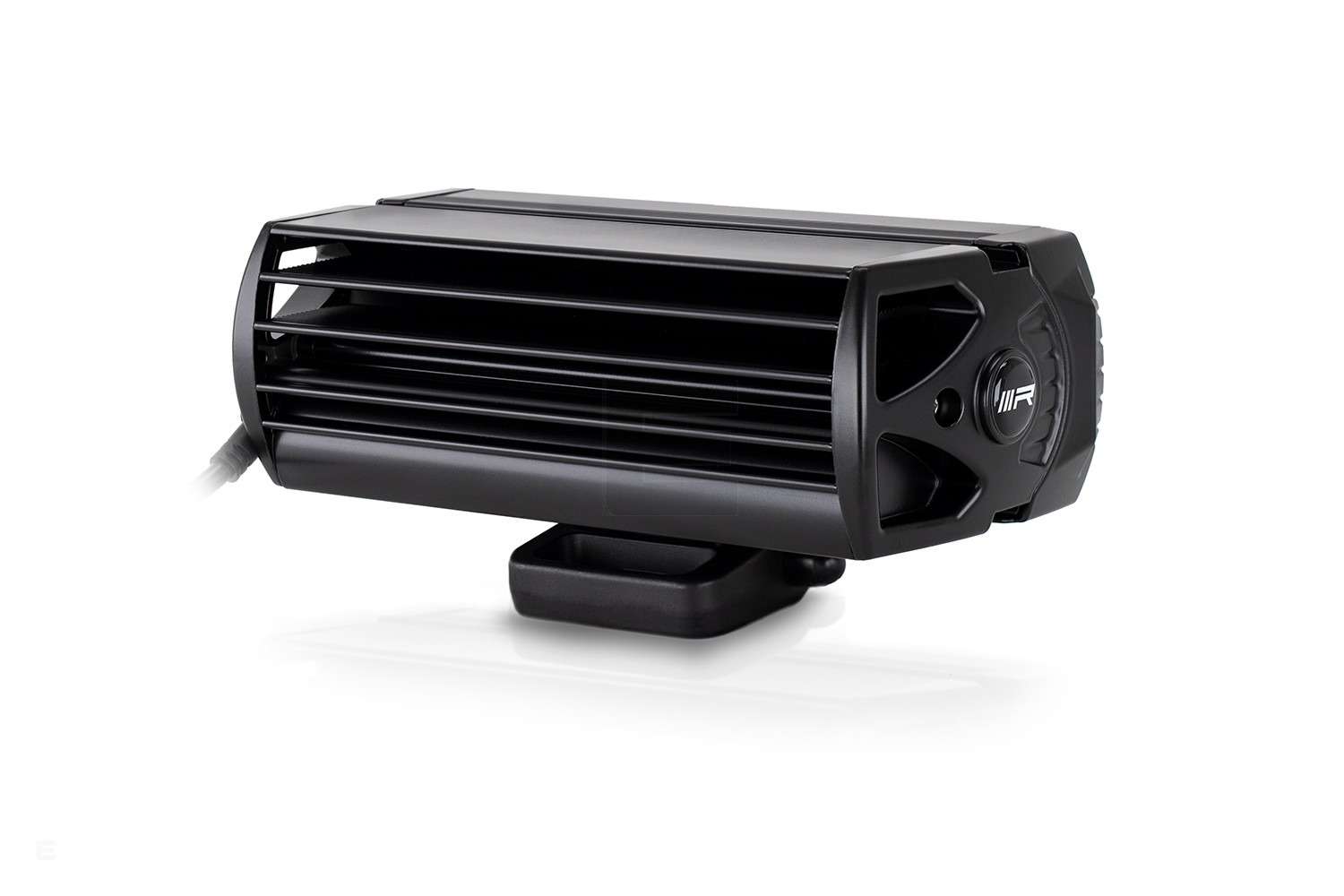

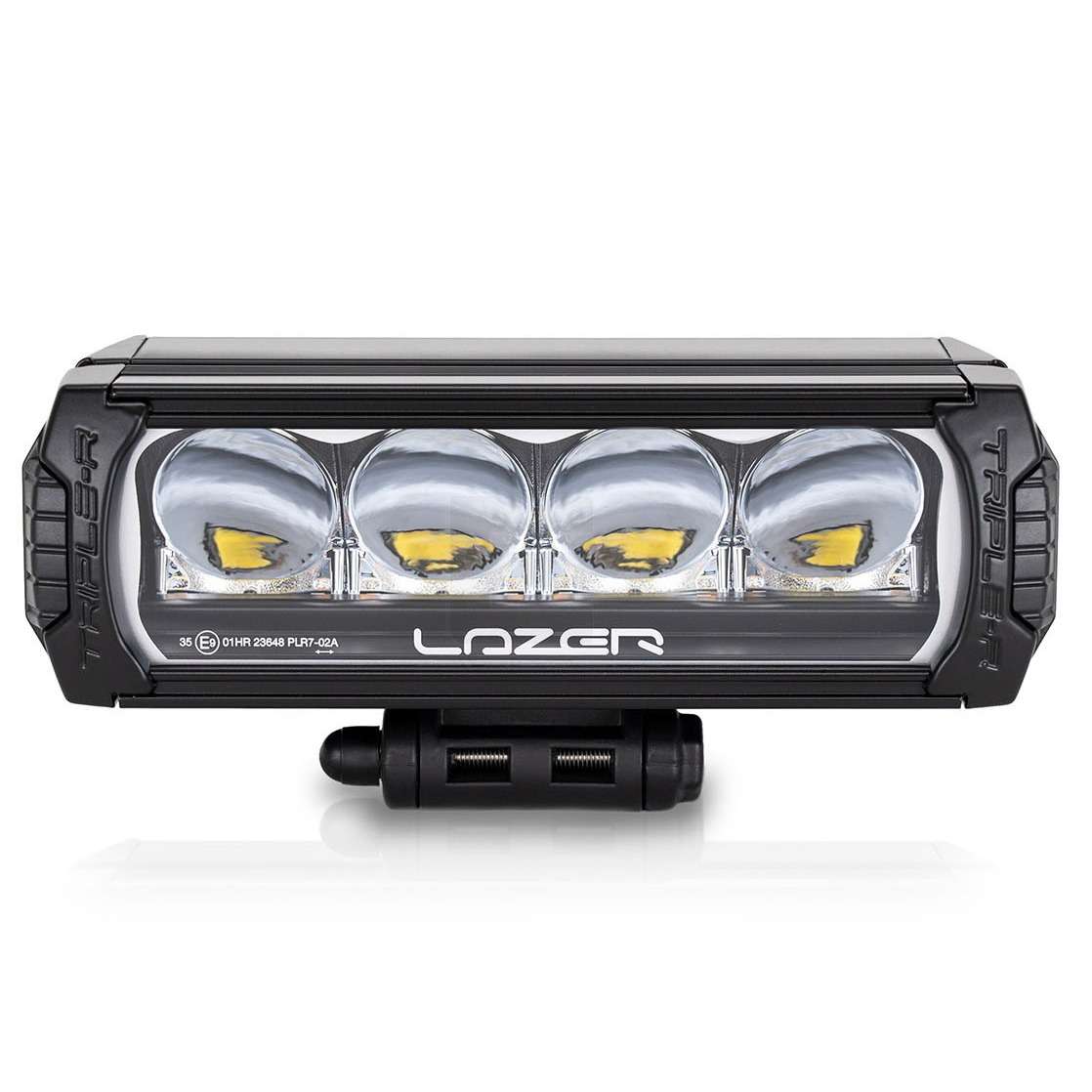

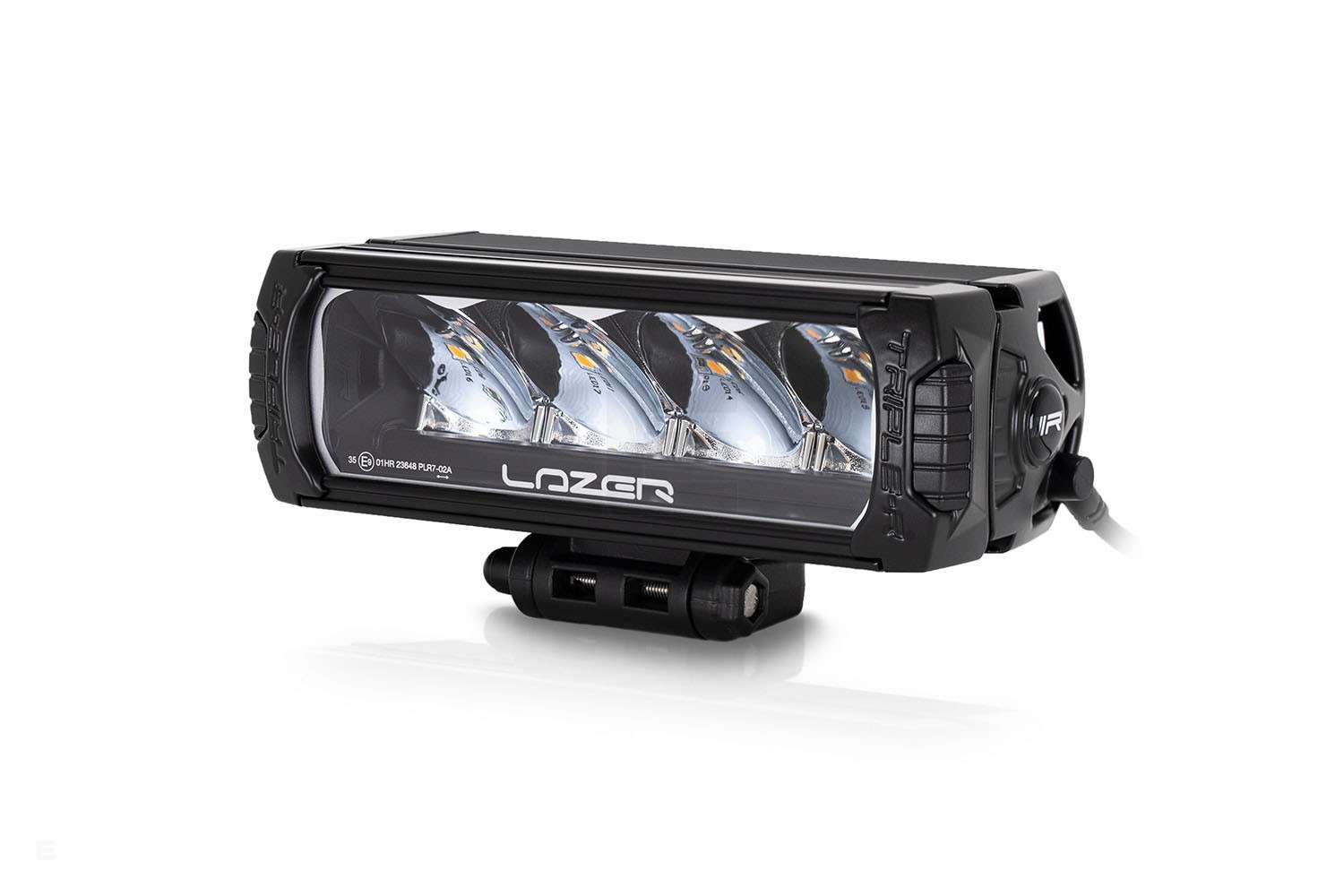

Lazer Triple-R 750 Gen2 High Beam LED (single)

د.إ 4,199

Boasting 4,620 lumens, delivering 1 lux to 433m, the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, means more light is directed to where you need it, across a perfectly homogeneous beam pattern without flat spots. The color temperature of the light, at 5000k, is carefully selected to maximize definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.

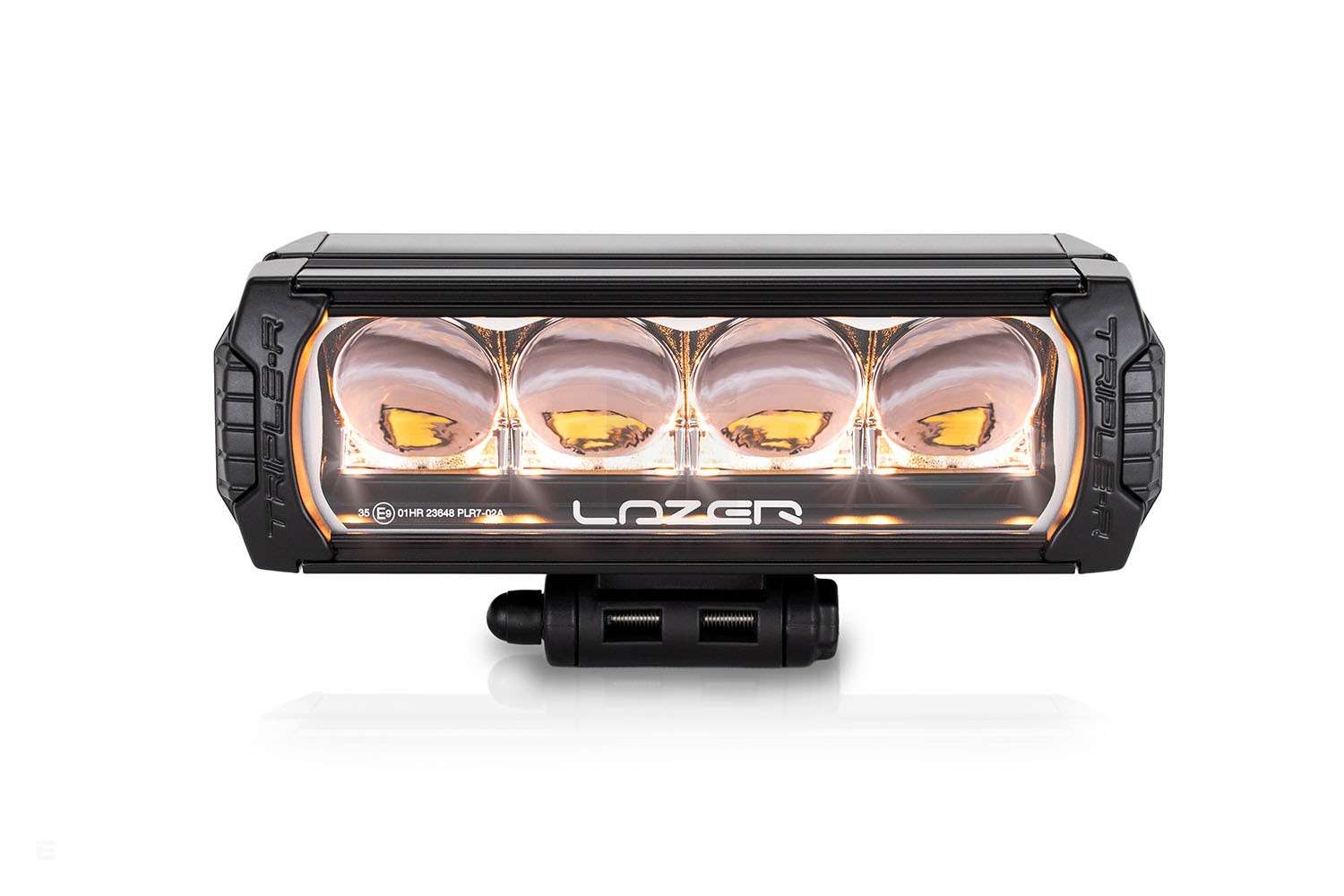

The Triple-R 750 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber colored position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 750 act as a high beam driving light only. The high beam function is approved to ECE Regulation 112, while the position light function (white only) is approved to ECE regulation 7, allowing your Triple-R 750 to operate in parallel with your standard headlights (where UNECE regulations are recognised).

SKU: LZ00R4-G2-B Categories: , Brand:

Description

Technical information:

Voltage Range  9-32V
LED Life  50,000 hours
Weight  1 kg
HIGH BEAM FUNCTION
Total Luminous Flux  4620 Lm
Colour Temperature 5000k
Number of High Output LEDs  4
Power Consumption  45 Watts
Current Draw (at 14.4V)  3.1 Amps
CERTIFICATION
High Beam ECE R112
E-Mark Ref 35
Position Light (White) ECE R7

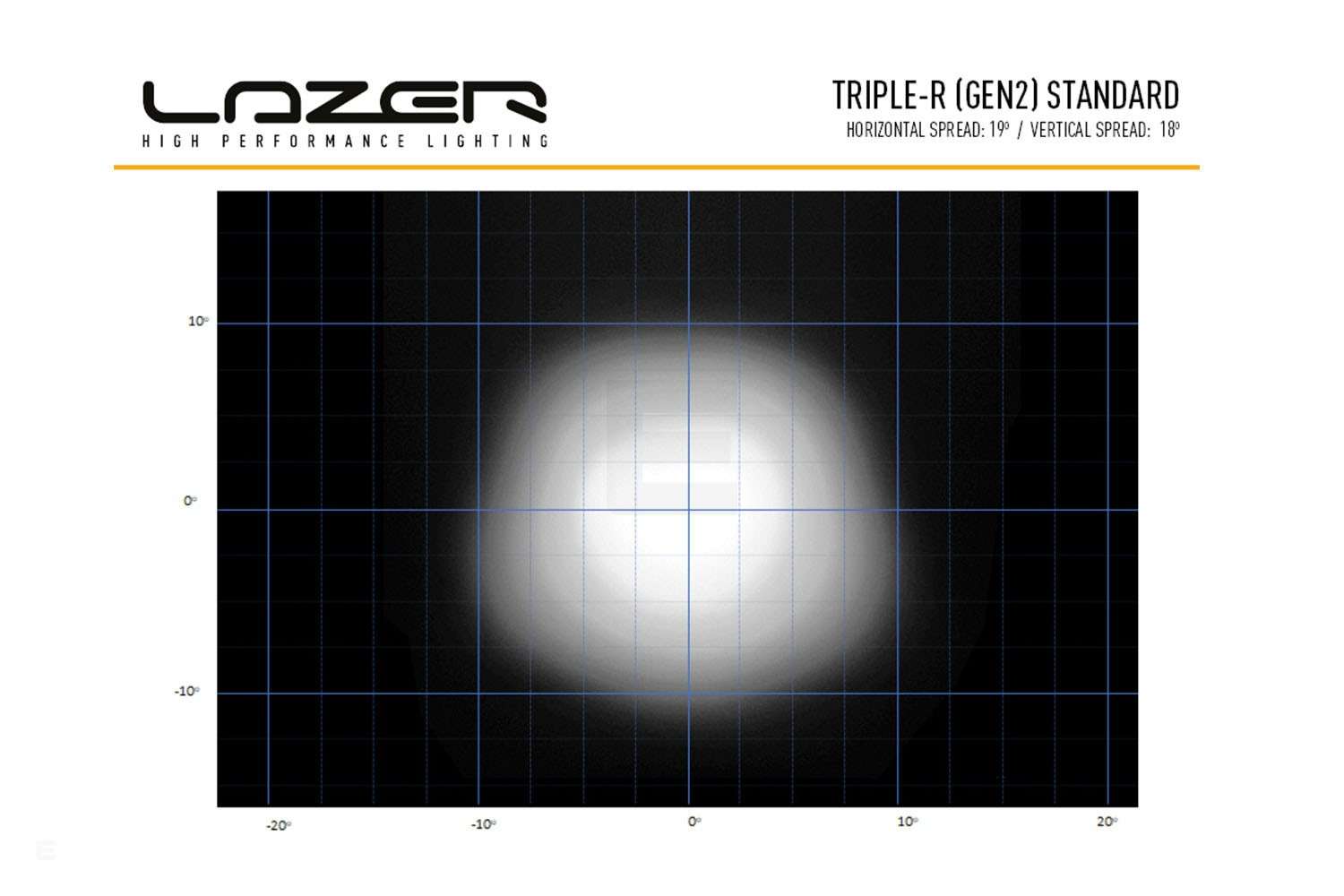

PHOTOMETRIC DATA
Horiz Beam Angle 19 Deg
0.25 lx Line 866 metres
0.5 lx Line 612 metres
1 lx Line 433 metres
3 lx Line 250 metres
